Blueprint generation
Auto-Generated Logic
Menus, Switchers, Events
A practical reference for generated Blueprint logic: sibling menu matching, WidgetSwitcher tabs, close/show flow, volume sliders, video, timers, blinking, progress, and auto-scroll.

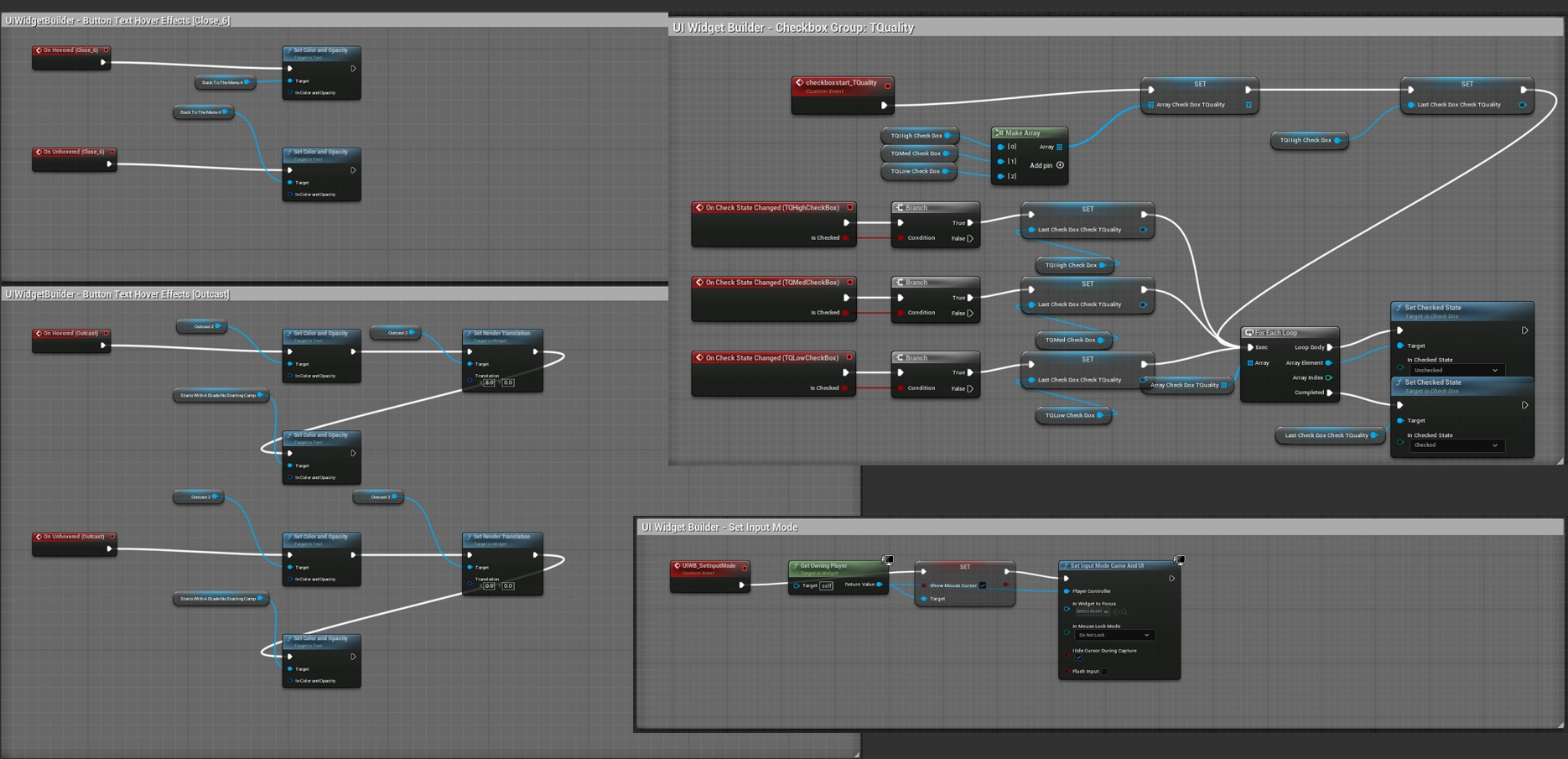

Generated Blueprint logic
What the importer can generate automatically
The importer can generate several Blueprint graph systems. Some are complete runtime helpers, while some are clean helper sections designed to give users a practical starting point for project-specific Blueprint work.
generated graph systems
Sibling/menu targeting
Automatic button target matching
When a button does not have an explicit interaction target, the importer builds a visibility-target map from the JSON and tries to match button names to screen/group names.
| Example | Matched target | Generated behavior |
|---|---|---|
BTN_Settings |
CAN_Settings / GRP_Settings / PNL_Settings |
OnClicked can toggle or show the matching target widget. |
BTN_Quit |
CAN_QuitWindow or GRP_Quit |
Useful for sibling popup menus such as Quit, Settings, Character Select. |
BTN_Start |
Not another BTN_Start |
Button groups are excluded as automatic visibility targets to prevent self-toggle mistakes. |
✓
Target priority
The source prioritizes targets in this order: CAN_ / screen first, then GRP_, then unprefixed containers, then PNL_. This helps BTN_Settings choose a real screen before a decorative panel.
WidgetSwitcher
Tabs, switchers, and Common Animated Switcher
| Feature | Generated result | Restriction |
|---|---|---|
switchTab button metadata |
OnClicked → SetActiveWidgetIndex on the target WidgetSwitcher. |
The button must target a direct page/child of a WSW_ / WIS_ switcher in the exporter data. |
| WidgetSwitcher active index helpers | Custom events named like UIWB_Switcher_SetIndex_0. |
Generated only for detected switcher/page data. |
| Change to Common Animated Switcher | Creates the switcher as CommonUI's CommonAnimatedSwitcher / UCommonAnimatedSwitcher when available. |
Requires the Unreal CommonUI plugin and is for UE 5.7 / UE 5.8. UE 5.6 keeps normal WidgetSwitcher behavior. |
Root close/show logic
Close On Key and Show After Close
| Option | Generated logic | Caution |
|---|---|---|
| Close on the Key | Creates close-key logic for the selected root and hides it after the close flow. | Use specific keys when possible. Any Key can close on broad keyboard/gamepad input. |
| Show After Close | Shows another root after the current root closes. | The target list filters invalid roots and excludes the current root. |
| Detached target | Creates the detached widget and adds it to the viewport. | Detached roots must be imported and have a valid generated WBP name. |
| Pause Game When Visible | Generates pause/unpause helper events for the root. | Test carefully with menus that also use level transitions. |
Button logic
Generated button events
| Option / pattern | Generated result |
|---|---|
| Add Click SFX | Adds a click event helper chain and click sound helper logic. |
| Add Hover SFX | Generates an OnHovered event and sound helper logic. |
| Button-child text hover options | Generates hover/unhover events for child TextBlocks. Supported options include flipped color on hover, center scale on hover, and move-to-right on hover. |
| Close Parent Screen | OnClicked closes/hides the parent screen target. |
| Enable/Visible widget | OnClicked sets a selected root visible and enabled. |
| Load Level On Click | Generates an Open Level by Name node chain. |
| Create Widget By Click/Touch | Generates OnClicked logic that creates the selected widget class and adds it to the viewport. |
BTN_Exit / quit style flow |
Can generate a QuitGame node path depending on the imported action data/settings. |
Runtime helper systems
Other generated graph systems
| System | Generated result | Notes |
|---|---|---|
| CHKG_ checkbox group | Creates checkbox array, initializes the first checkbox as the default checked item, and tracks LastCheckBoxCheck for mutual exclusion. | Needs at least two checkbox/toggle members. Text labels under the group are set to remove hit test so they do not block checkbox clicks. |
| Volume sliders | Generates OnValueChanged helper graph for Master/SFX/Music volume sliders. | Project sound classes/mixes may need manual assignment. |
| Editable text | Clear text helper event, OnTextCommitted Submit On Enter path, empty validation branch, password flag for text boxes. | Clear-on-focus is provided as a helper event; verify final focus behavior in your project. |
| Image Play Video | Creates a MediaPlayer variable and PlayVideo helper graph for the selected image. | User should assign the MediaPlayer asset manually in the generated widget. |
| Text TimeCounter | Creates a counter variable, Tick-driven update path, converts time to text, and updates a TextBlock. | One generated counter variable per selected TextBlock. |
| Blinking Effect | Uses real time seconds and SetRenderOpacity to pulse a selected text/image widget. | Generated only for supported selected elements. |
| ProgressBar FillBar | Creates a percent variable and runtime update graph for SetPercent. | Use the generated variable as the driving value. |
| ScrollBox Auto Scroll | Generates auto-scroll logic with looping reset behavior. | Best for credits, menus, or auto-moving lists. |
Level Blueprint
Add Widget To Current Level
Level Blueprint BeginPlay
→ UIWB_ADD_TO_LEVEL
→ CreateWidget(selected WBP)
→ AddToViewport
→ PlaySound2D(selected music, if enabled)!
Important
The generated Level Blueprint path depends on the currently open editor level. Check the Level Blueprint after import if the widget does not appear in PIE.
